Device Interface - Benson CCS-200 Spirometer

This page provides instructions for interfacing the Benson CCS-220 Spirometer with the Enterprise Health system. Lists of the fields and results the interface retrieves are provided, and instructions for installing required applications for functionality are linked, where applicable.

Collected Data Fields

The following data fields are collected in
using Benson CCS-200:

• Patient MRN
• Test Date/Time
• FVC
• FEV1
• FEV1/FVC
• PEF
• FEF 25%-75%
• Interpretation
• Calibration Date and Result
• Test Temperature
• Test Humidity
• Curve information to reproduce graph

Using the Device Interface

From the encounter, the Spirometry/PFT can be added to the exam using the Tests & Procedures section. If the chart is due for the procedure, it can be added from the Due List. Otherwise, users may use the In House Testing Pick List or autocomplete to manually add the procedure, as needed.

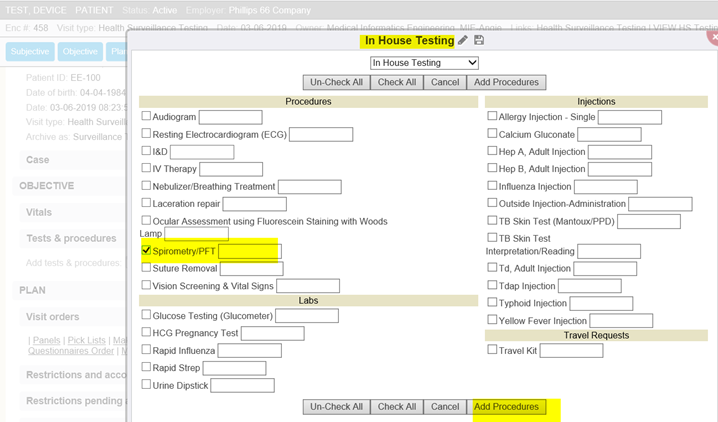

1. Using the In House Testing icon or autocomplete, select Spirometry/PFT to add to the exam.

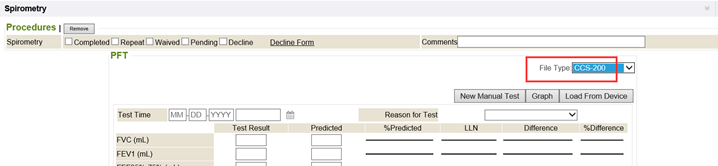

2. After adding the procedure to the exam, open the Spirometry/PFT section by clicking the header, and select the appropriate device (i.e., CCS-200) from the File Type dropdown.

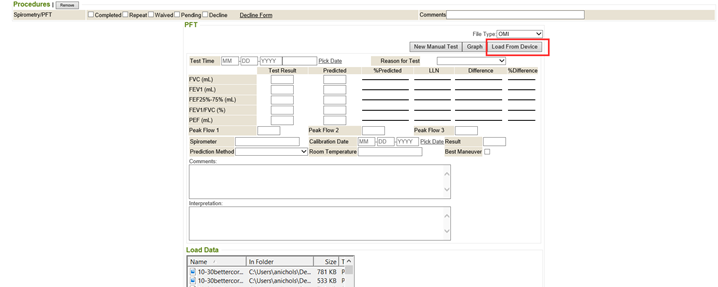

1. To import the spirometry/PFT results, click the Load From Device button.

2. When loading test data, be sure to select the Reason for Test using the dropdown.

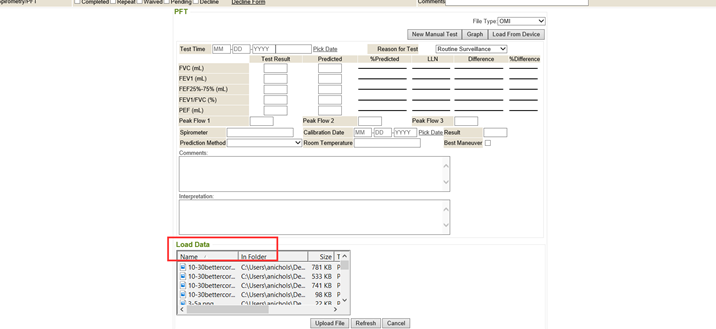

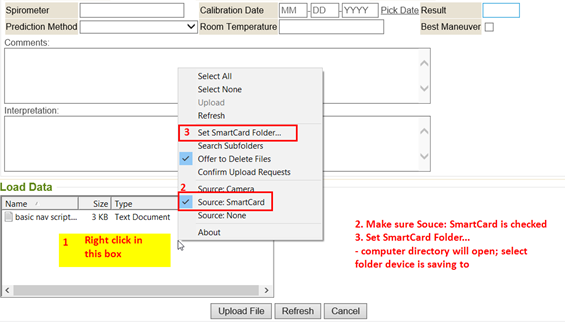

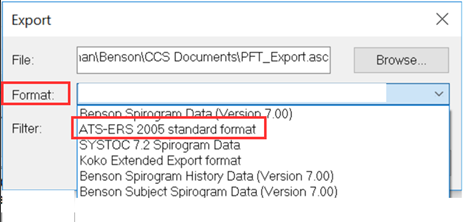

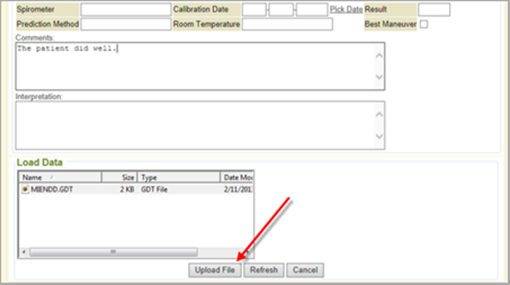

3. After clicking the Load From Device button, the Load Data section will appear. Select the ATS/ERS formatted file.

4. Before uploading the file, add any pertinent information using the Comments and Interpretation fields.

5. Click the Upload File button.

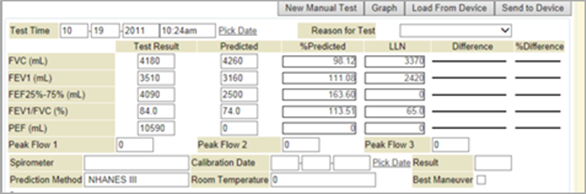

6. The results will populate the section.

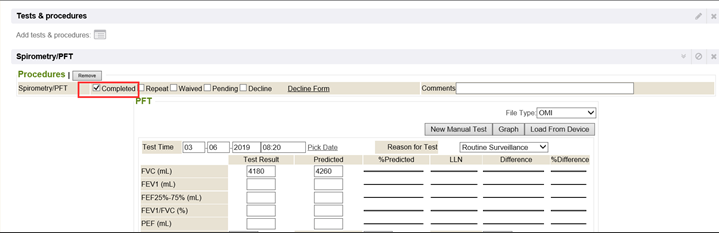

7. Scroll to the top of the expanded spirometry/PFT encounter section and select Completed by placing a check mark in the box.

8. Click the header or Next button to collapse the section and continue working in the encounter, as needed.
